SmartFit 100 Home Lift
The SmartFit 100 is a 2 person home lift that moves you safely and smoothly between two floors, with no lift shaft and no pit needed. It suits anyone who finds the stairs hard and wants to stay comfortable and independent at home.
- No lift shaft required
- No pit, just a 65 mm platform
- Carries 170 kg or 2 people
- Travels up to 3 m, 2 stops
Why choose the SmartFit 100 2 person home lift
Designed for function and good looks, the SmartFit 100 takes up very little space and fits into your home without major building work.
No shaft needed
The SmartFit 100 doesn't need a purpose-built lift shaft or complex construction. That saves you money and avoids big structural changes to your home.
No pit required
There's no pit to dig. The platform is only 65 mm thick, so the lift sits neatly on your existing floor.
Quick, easy installation
The lift is designed to go in fast with minimal disruption to your routine. In most cases it's ready to use shortly after installation starts.
Room for two
The platform comfortably fits two passengers. Ride with a companion, or bring up groceries and household items with ease.
Stylish, space-saving design

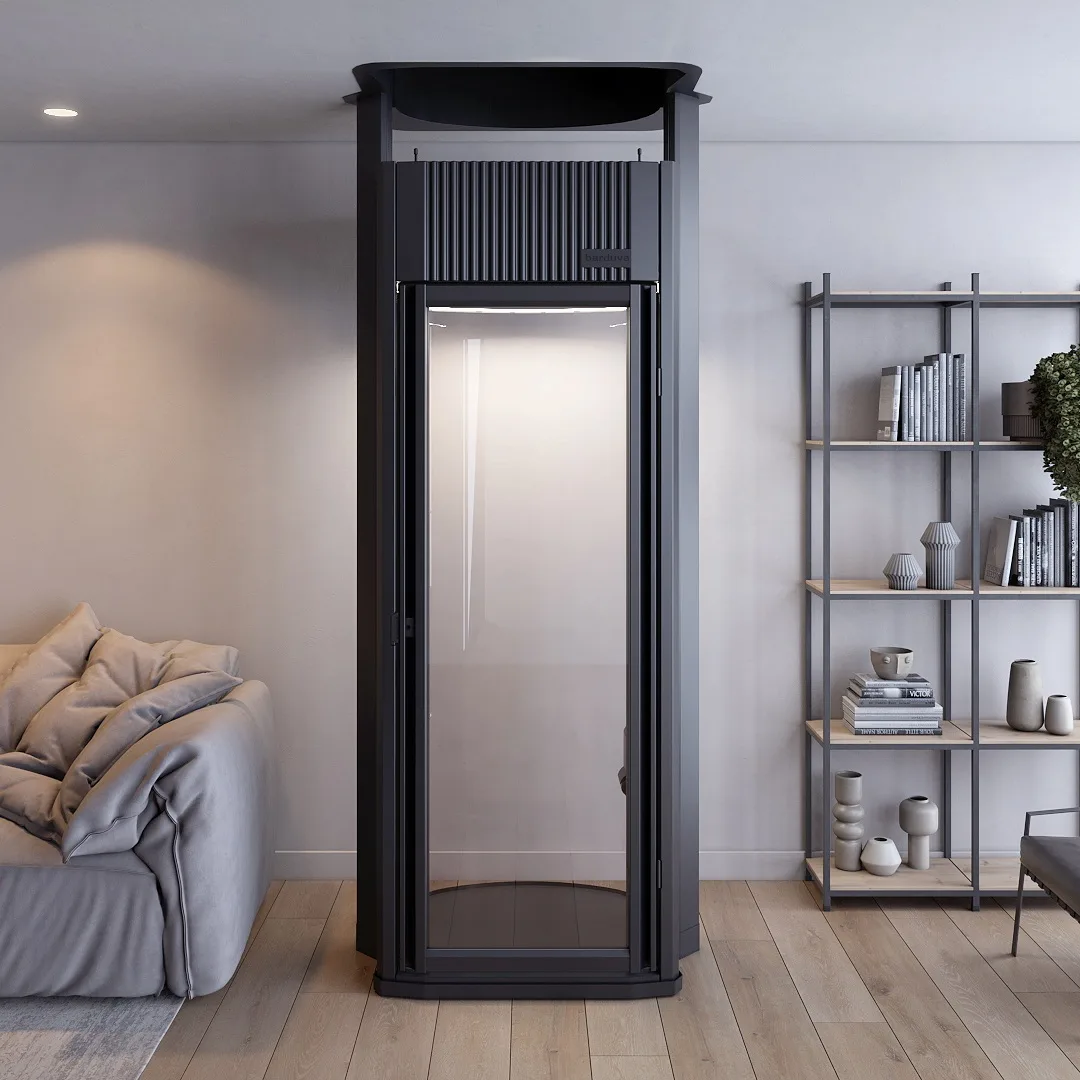

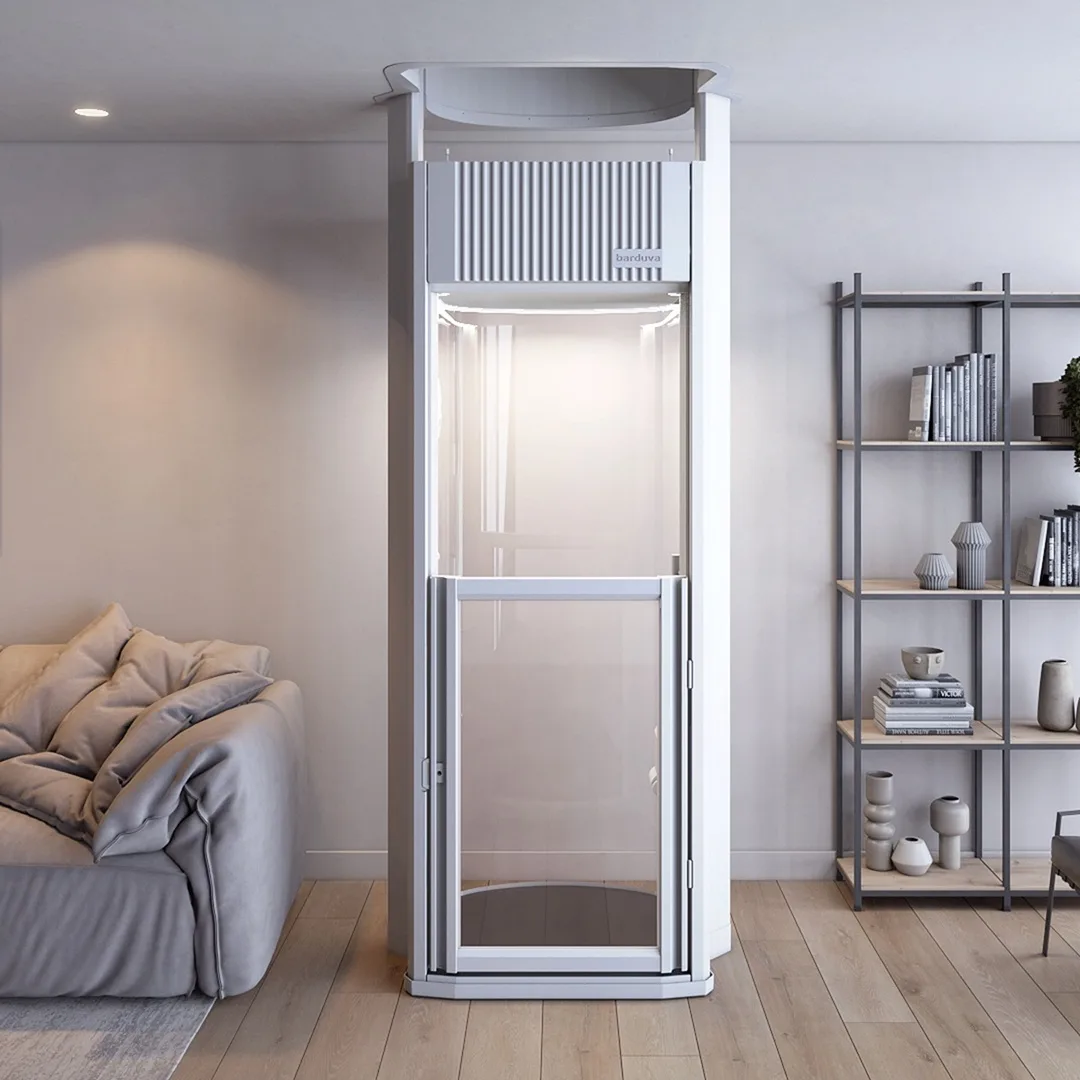

A modern, lightweight look with clear acrylic side panels. It blends into almost any interior without eating into your living space.
Safety built in
A safety plate under the platform, an overweight sensor and a belt tension sensor give you peace of mind on every trip.
Simple controls for every day
Moving between floors takes just the press of a button. The control panel is clear and easy to use for the whole family.
- Up and down buttons on the control panel
- Emergency and alarm buttons within easy reach
- Two remote controls included as standard
- Safety gate with a safety sensor
Made to fit your home
As a 2 person home lift, the SmartFit 100 needs a footprint of just 1046 x 731 mm. It travels between 2.4 m and 3 m, which suits most two storey homes.
You'll need a minimum ceiling height of 2000 mm on the lower level and 2370 mm on the upper level. Our team will check your space before you get your quote.
Comparing a few small lifts? Browse our full range of home lifts in Australia.
SmartFit 100 gallery
Options and finishes
Match the lift to your home and add the extras you need. The frame can be painted in any RAL colour.
SmartFit 100 specifications
| Load capacity | 170 kg / 2 people |
|---|---|
| Stops | 2 |
| Travel height | 2400 mm minimum, 3000 mm maximum |
| Footprint (width x length) | 1046 x 731 mm |
| Internal cabin (width x length x height) | 775 x 665 x 1920 mm |
| Door (height x width) | 1920 x 672 mm |
| Gate with safety sensor | 1100 mm |
| Pit | No pit needed. Platform thickness 65 mm |
| Minimum ceiling height, lower level | 2000 mm |
| Minimum ceiling height, upper level | 2370 mm |
| Drive | Belt driven system |
| Guide rails | Aluminium |
| Side walls | Clear acrylic |
| Controls | Up and down buttons, emergency button, alarm button, 2 remote controls |
| Safety system | Safety bottom plate, overweight sensor, belt tension sensor |
| Options | Any RAL colour, floor indicator, drop seat, auto dialler, 4G GSM unit |
Specifications may vary with site conditions. Our team will confirm every detail for your home in your quote.
SmartFit 100 FAQs
Does the SmartFit 100 need a lift shaft?
No. This 2 person home lift is designed to go in without a specially prepared shaft or complex construction work. That keeps building costs down and avoids big changes to your home.
Do I need to dig a pit?
No pit is needed. The platform is only 65 mm thick and sits on your existing floor.
How much space does the SmartFit 100 need?
The lift needs a footprint of 1046 x 731 mm. You'll also need a ceiling height of at least 2000 mm on the lower level and 2370 mm on the upper level. It travels between 2.4 m and 3 m.
How many people can it carry?
As a 2 person home lift, the SmartFit 100 carries up to 170 kg. It's handy for travelling with a companion or carrying shopping between floors.
How much does a 2 person home lift cost?
The price depends on your home, your travel height and the options you choose. Get a free quote for an exact price, or read our guide to home lift prices in Australia.
